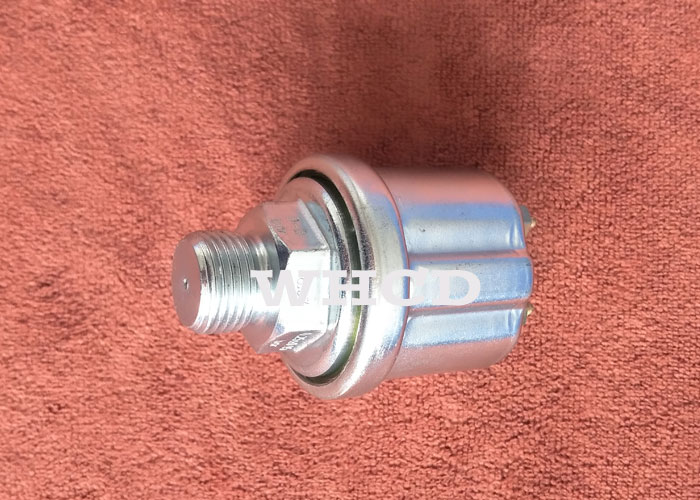

M18x1.5 White Zinc Plated Mechanical Oil Pressure Sensor For YUCHAI Engine
Product Description
Oil pressure sensor is high quality, high stability, small size. low weight. Compact structure, low cost and mass production. The products are widely used to measure of air compressors, auto engines, air conditioning equipment etc. The product is made of carbon steel , SS304 / 316 or brass, which is ideal for industrial environment.
Application
Automotive Engine
Automotive Brake System
Air Compressor
Agricultural Machinery Engine
Generator Engine
Diesel Engine
Hydraulic Control System
Technical Data
Conducting power: < 5W
Operating temperature: -40 ~125℃
Measuring range: 0 ~ 10 Bar
Alarm: 0.8 Bar
Output signal:10~184Ω
Thread fitting: NPT1/4, NPT1/8, M10, M12X1.5 or customized as requires.
Protection rank: IP66
Feature
Oil Pressure Sensor combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature etc.
Instruction
This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.
Cautions
1. this product needs a wrench to be clamped to Hex nut and tighten the thread. The maximum tightening torque is 17N.m.

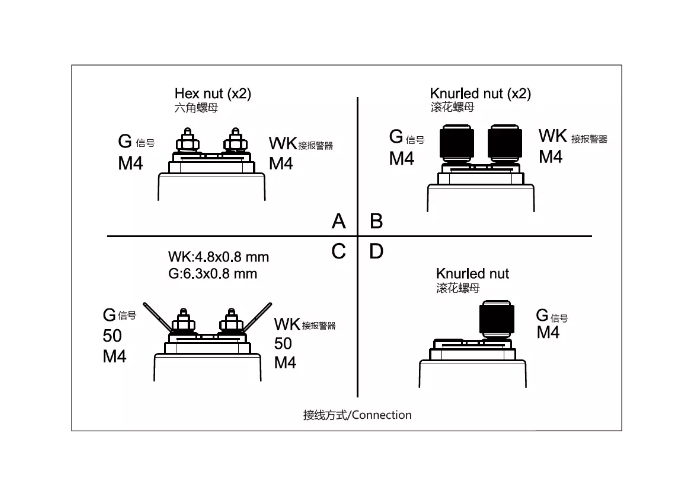

2. the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.
Basic Function Test
Life Test
Vibration Test
Vibration Test Parameters
Temperature Cycling Parameters
Delivery
Normally it’s 3-5 working days after payment cleared.
Payment
30% down-payment for production,the balance payment before shipment.
Packing
A: Product packed in foam box with bubble bag.
B: According to client’s requirement.
Shipment
DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.
Advantage
1.Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles.
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Q & A
| Question | Answer |
| What’s your main products? | Oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor |
| Where are you? | Wuhan city, Hubei Province, China |
| Do you accept OEM? | Yes, OEM is welcomed |
| Are you manufacturer or trading company? | We are manufacturer with export license. |
| Do you provide sample? | Yes |
| Do you have any certificate? | Yes,we have ISO/TS16949, RoHS |
| What’s the MOQ? | There’s no limit for MOQ |
