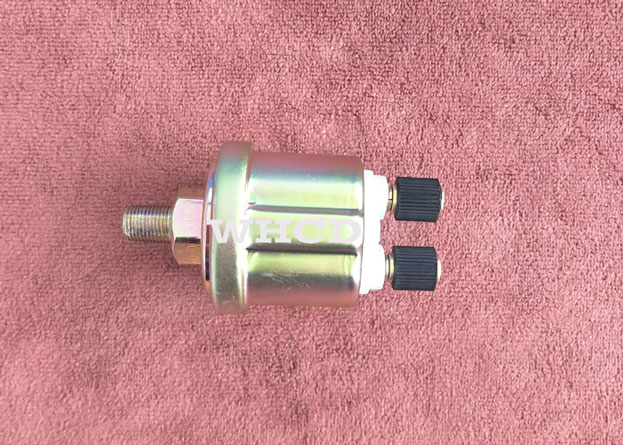

Color Zinc Plated Automotive Oil Pressure Sensor For Auto Instruments
Product Description
The oil pressure sensor is installed on the main oil channel of the engine. When the engine runs, the pressure measuring device detects the pressure of oil and transfers the pressure signal to the electrical signal to the signal processing circuit. The pressure signal is connected to the oil pressure meter. When the voltage is below the alarm voltage, the alarm circuit output the signal and pass through, alarm light is on.
Application
Automotive Engine
Automotive Brake System
Air Compressor
Agricultural Machinery Engine
Generator Engine
Diesel Engine
Hydraulic Control System
Technical Data
Operating voltage:6~24V
Conducting power: < 5W
Operating temperature: -40 ~120℃(120℃ MAX 1H)
Measuring range: 0~10Bar
Alarm:1.4Bar
Output signal: Standard resistance value: 10~184Ω
Thread fitting: NPT1/4, NPT1/8, M10x1, M12x1.5 or customized as requires.
Protection rank: IP66
Features
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeat-ability / Hysteresis
Special design for customer
Many OEM options
Cautions
1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.
2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles.
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Basic Function Test
Life Test
Sinusoidal Vibration Test
Vibration Test Parameters
Temperature Cycling Parameters
Delivery
Normally it’s 3-5 working days after payment cleared.
Payment
30% down-payment for production,the balance payment before shipment.
Packing
A: Product packed in foam box with bubble bag.
B: According to client’s requirement.
Shipment
DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.
Q & A
| Question | Answer |
| What’s your main products? | oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor |
| Where are you? | Wuhan city, Hubei Province, China |
| Do you accept OEM? | Yes, OEM is welcomed |
| Are you manufacturer or trading company? | We are manufacturer with export license. |
| Do you provide sample? | Yes |
| Do you have any certificate? | Yes,we have ISO/TS16949, RoHS |
| What’s the MOQ? | There’s no limit for MOQ |
